Rp. 2.200.000

Deskripsi

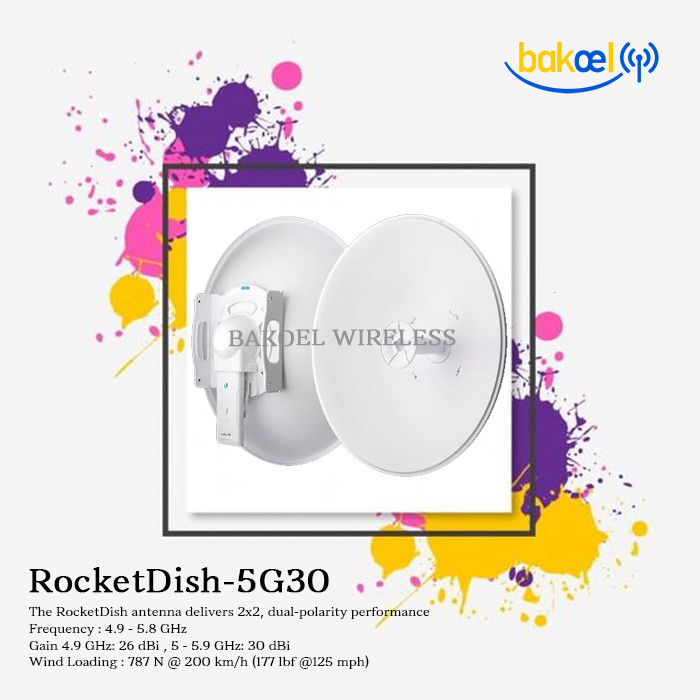

The RocketDish antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver
bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP’s customers.

The 5 GHz frequency band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links. However, 5 GHz signals have more difficulty passing through
obstacles than lower-frequency signals. The 4.9 GHz frequency band typically requires a license and is reserved for public safety applications.

This version is strenghten then a Light Weight version, the material of the the antenna were more solid in term for delivering the further and longer distance to reach, the stability in packet data transfer is more packed and reduse the risk in lost the connection.

Model : RD-5G30
Dimension : 650 x 650 x 304 mm (25.6 x 25.6 x 11.97")
Weight : 9.8 kg (21.61 lb)
Frequency : 4.9 - 5.8 GHz
Gain 4.9 GHz: 26 dBi , 5 - 5.9 GHz: 30 dBi
HPOL Beamwidth : 5° (3 dB)
VPOL Beamwidth : 5° (3 dB)
F / B ratio : 34 dB
Max. VSWR : 1.4:1
Wind Loading : 787 N @ 200 km/h (177 lbf @125 mph)
Wind Survivability : 200 km/h (125 mph)
Polarization : Dual-Linear
Cross-pol Isolation : 35 dB Min.
ETSI Specification : EN 302 326 DN2
Mounting : Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
